XRD9814 Datasheet, Processors, Exar

XRD9814 Features

  • Processors
  • 14-Bit (XRD9814) or 16-Bit (XRD9816) A/D Converter
  • No Missing Codes
  • Triple-Channel, 2.5 MSPS Color Scan Mode
  • Single-Channel, 6 MSPS Monochrome Sc

PDF File Details

Part number:

XRD9814

Manufacturer:

Exar

File Size:

709.12kb

Download:

📄 Datasheet

Description:

(xrd9814 / xrd9816) 3-channel 14/16-bit linear ccd/cis sensor signal processors. The XRD9814/9816 is a fully integrated, high-performance analog signal processor/digitizer specifically designed for use in 3-channel

Datasheet Preview: XRD9814 📥 Download PDF (709.12kb)

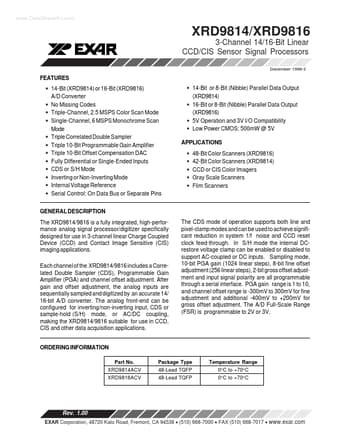

Page 2 of XRD9814 Page 3 of XRD9814

XRD9814 Application

  • Applications Each channel of the XRD9814/9816 includes a Correlated Double Sampler (CDS), Programmable Gain Amplifier (PGA) and channel offset adju
