XRD9825

16-Bit Linear CIS/CCD Sensor Signal Processor

XRD9825 Features

* 16-Bit Resolution One-channel 12MSPS Pixel Rate Triple-channel 4MSPS Pixel Rate 6-Bit Programmable Gain Amplifier 8-Bit Programmable Offset Adjustment CIS or CCD Compatibility Internal Clamp for CIS or CCD AC Coupled Configurations No Mis

XRD9825 General Description

The XRD9825 is a complete linear CIS or CCD sensor signal processor on a single monolithic chip. The XRD9825 includes a high speed 16-bit resolution ADC, a 6-bit Programmable Gain Amplifier with gain adjustment of 1 to 10, and 8-bit programmable input referred offset calibration range of 800mV. In t.

XRD9825 Datasheet (237.49 KB)

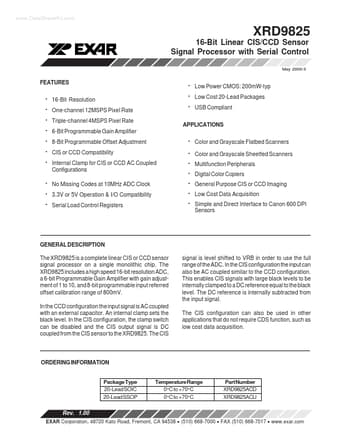

Preview of XRD9825 PDF

Datasheet Details

Part number:

XRD9825

Manufacturer:

Exar Corporation

File Size:

237.49 KB

Description:

16-bit linear cis/ccd sensor signal processor.
