XRD9826

16-Bit Linear CIS/CCD Sensor Signal Processor

Exar Corporation

XRD9826 Features

* APPLICATIONS

* 16-Bit Resolution One-channel 6MSPS Pixel Rate Triple-channel 2MSPS Pixel Rate 6-Bit Programmable Gain Amplifier 8-Bit Programmable Offset Adjustment CIS or CCD Compatibility Internal Clamp for CIS or CCD AC Coup

XRD9826 General Description

The XRD9826 is a complete linear CIS or CCD sensor signal processor on a single monolithic chip. The XRD9826 includes a high speed 16-bit resolution ADC, a 6-bit Programmable Gain Amplifier with gain adjustment of 1 to 10, and 8-bit programmable input referred offset calibration range of 800mV. In t.

XRD9826 Datasheet (221.96 KB)

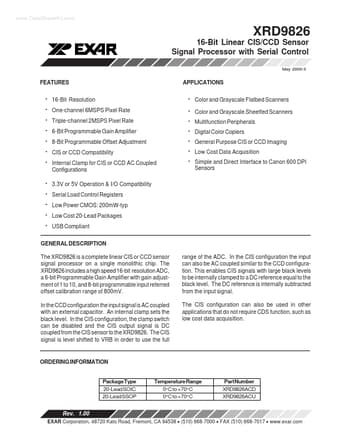

XRD9826 Datasheet Preview — Preview of XRD9826 PDF

Datasheet Details

Part number:

XRD9826

Manufacturer:

Exar Corporation

File Size:

221.96 KB

Description:

16-bit linear cis/ccd sensor signal processor.
