XRD9824 - 14-Bit Linear CIS/CCD Sensor Signal Processor

The XRD9824 is a complete linear CIS or CCD sensor signal processor on a single monolithic chip. The XRD9824 includes a high speed 14-bit resolution ADC, a 6-bit Programmable Gain Amplifier with gain adjustment of 1 to 10, and 8-bit programmable input referred offset calibration range of 800mV. In t.

XRD9824 Features

* APPLICATIONS

* 14-Bit Resolution, No Missing Codes One-channel 6MSPS Pixel Rate Triple-channel 2MSPS Pixel Rate 6-Bit Programmable Gain Amplifier 8-Bit Programmable Offset Adjustment CIS or CCD Compatibility Internal Clamp for

XRD9824_ExarCorporation.pdf

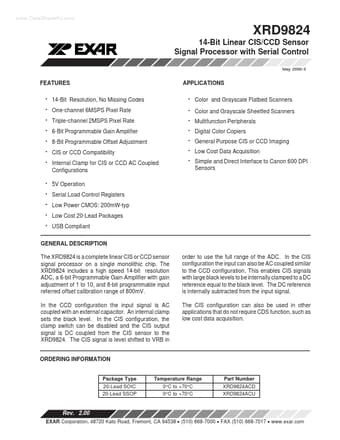

XRD9824 Datasheet Preview — Preview of XRD9824 PDF

Datasheet Details

Part number:

XRD9824

Manufacturer:

Exar Corporation

File Size:

215.20 KB

Description:

14-bit linear cis/ccd sensor signal processor.
