XRD98L62

CCD Image Digitizers

XRD98L62 Features

* 12-bit Resolution ADC 30MHz Sampling Rate 10-bit Programmable Gain: 0dB to 36dB PGA Digitally Controlled Offset-Calibration with Pixel Averager and Hot Pixel Clipper DNS Filter Rem

XRD98L62 General Description

The XRD98L62 is a complete, low power CCD Image Digitizer for digital motion and still cameras. The product includes a high bandwidth differential Correlated Double Sampler (CDS), 10-bit digitally Programmable Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter (ADC) and improved digitally cont.

XRD98L62 Datasheet (298.73 KB)

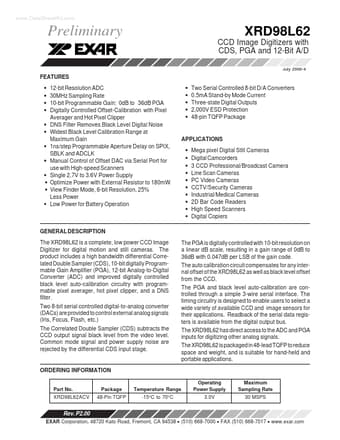

Preview of XRD98L62 PDF

Datasheet Details

Part number:

XRD98L62

Manufacturer:

Exar

File Size:

298.73 KB

Description:

Ccd image digitizers.
