XRD98L23

8-Bit High-speed Linear CIS/CCD Sensor Signal Processor with Serial Control

XRD98L23 Features

* APPLICATIONS

* 8-Bit Resolution, No Missing Codes One-channel 10MSPS Pixel Rate Dual-channel 5MSPS Pixel Rate Three-channel 3 MSPS Pixel Rate 6-bit Programmable Gain Amplifier 8-bit Programmable Offset Adjustment CIS or C

XRD98L23 General Description

The XRD98L23 is a complete linear CIS or CCD sensor signal processor on a single monolithic chip. The XRD98L23 includes a high speed 8-bit resolution ADC, a 6-bit Programmable Gain Amplifier with gain adjustment of 1 to 10, and a typical 8-bit programmable input referred offset calibration range of .

XRD98L23 Datasheet (452.46 KB)

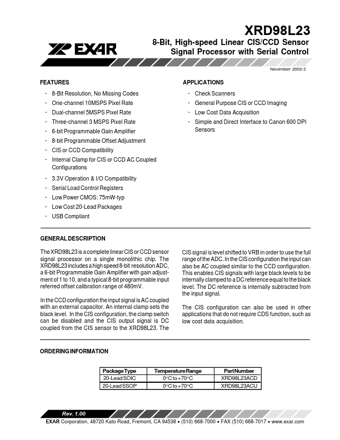

Preview of XRD98L23 PDF

Datasheet Details

Part number:

XRD98L23

Manufacturer:

Exar

File Size:

452.46 KB

Description:

8-bit high-speed linear cis/ccd sensor signal processor with serial control.
