CLC1606 Datasheet, Amplifier, Exar

CLC1606 Features

  • Amplifier n 1.2GHz -3dB bandwidth at G=2 n 3,300V/μs slew rate n 0.01%/0.01˚ differential gain/ phase error n 7.5mA supply current n 875MHz large signal bandwidth n 120mA output current (

PDF File Details

Part number:

CLC1606

Manufacturer:

Exar

File Size:

942.06kb

Download:

📄 Datasheet

Description:

1.3ghz current feedback amplifier. The COMLINEAR CLC1606 is a high-performance, current feedback amplifier with superior bandwith and video specifications. The CLC1606

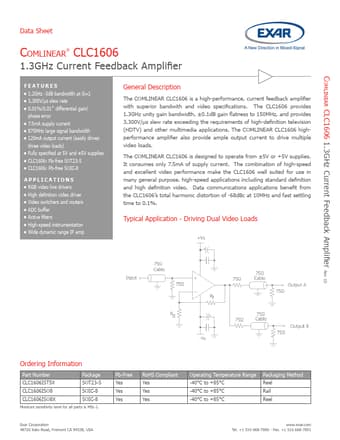

Datasheet Preview: CLC1606 📥 Download PDF (942.06kb)
Page 2 of CLC1606 Page 3 of CLC1606

CLC1606 Application

  • Applications n RGB video line drivers n High definition video driver n Video switchers and routers n ADC buffer n Active filters n High-speed
