EM5213 Datasheet - Excelliance MOS

High Current Power Distribution Switches

EM5213 Features

* include soft start, current limit protection, Power-On-Reset function, and over temperature protection. The EM5213 is available in SOT23-5L and DFN2X2-06 package. Ordering Information Part Number EM5213AJ-34 EM5213J-34 EM5213AJ-30 EM5213J-30 EM5213AJ-25 EM5213J-25 EM5213AVA-30 EM5213VA-30 Package

EM5213 General Description

The EM5213 is an N-channel MOSFET high-side power switch without parasitic body diode between drain and source. The EM5213 provides very low on-resistance as 40m and continuously delivers up to 3.4A output current. The fault flag output function indicates fault conditions to the local USB controlle.

EM5213 Datasheet (1.27 MB)

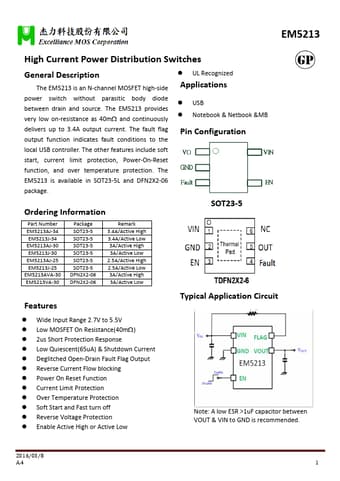

EM5213 Datasheet Preview — Preview of EM5213 PDF

Datasheet Details

Part number:

EM5213

Manufacturer:

Excelliance MOS

File Size:

1.27 MB

Description:

High current power distribution switches.
