EMP21N03HC Datasheet - Excelliance MOS

EMP21N03HC MOSFET

N‐Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: BVDSS 30V D RDSON (MAX.) 2.1mΩ ID 100A G UIS, Rg 100% Tested S Pb‐Free Lead Plating & Halogen Free EMP21N03HC ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate‐Source Voltage Continuous Drain Current1 Pulsed Drain Current2 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy L = 0.1mH, ID=65A, RG=25Ω Repetitive Avalanche Energy3 L =.

EMP21N03HC-ExcellianceMOS.pdf

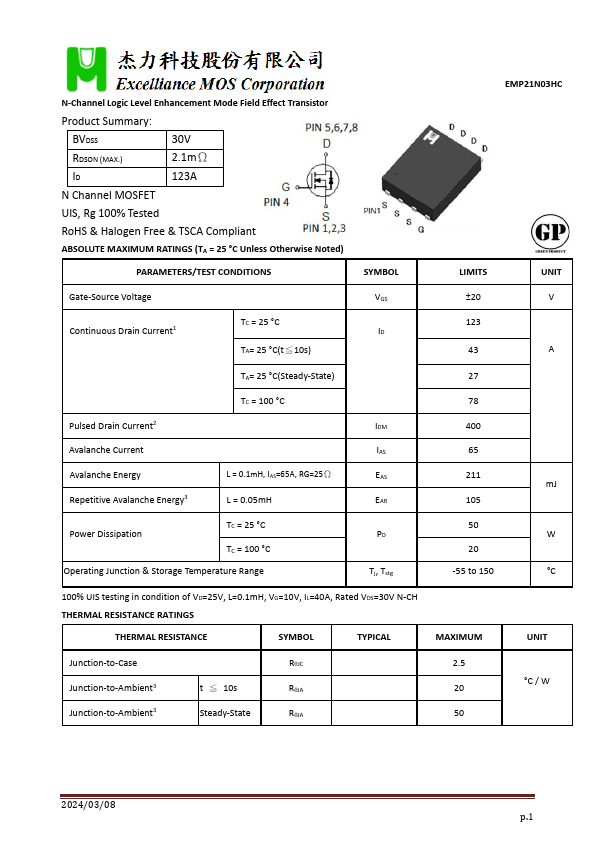

EMP21N03HC Datasheet Preview — Preview of EMP21N03HC PDF

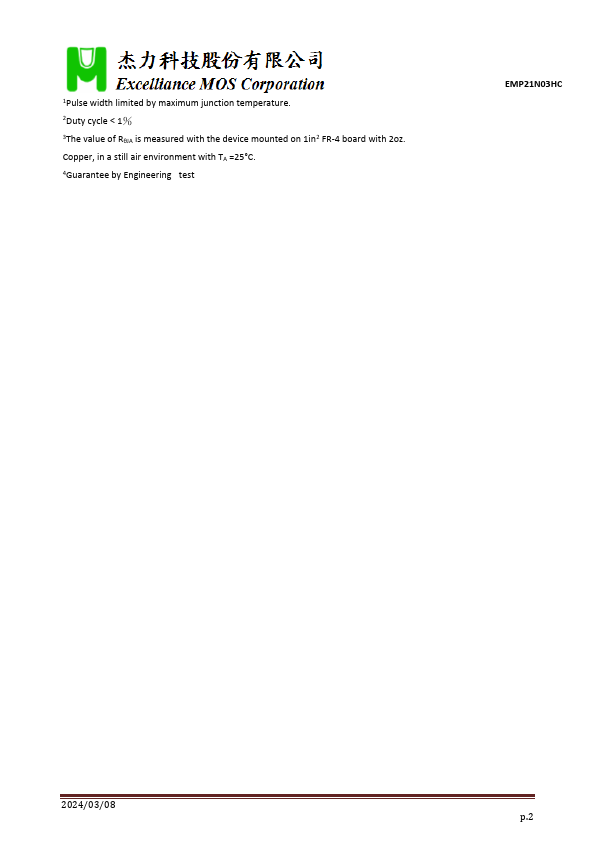

EMP21N03HC Datasheet Preview Page 2

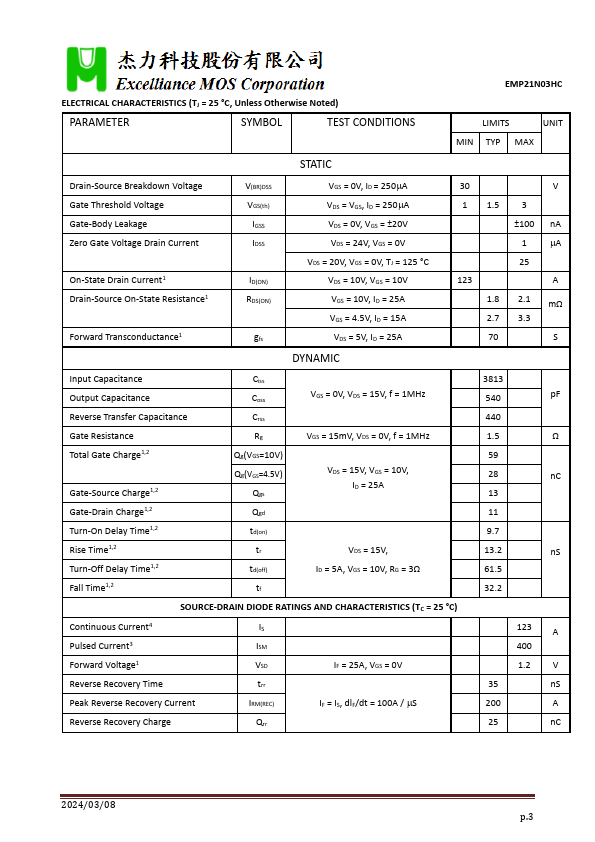

EMP21N03HC Datasheet Preview Page 3

Datasheet Details

Part number:

EMP21N03HC

Manufacturer:

Excelliance MOS

File Size:

210.30 KB

Description:

Mosfet.
