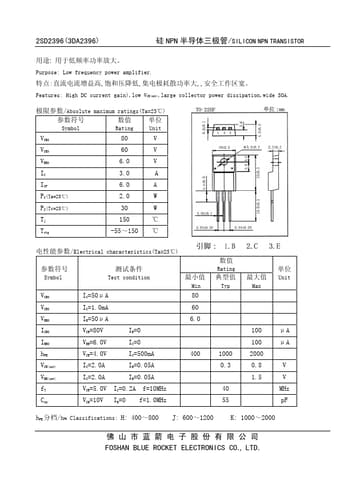

High DC current gain),low VCE(sat),large collector power dissipation,wide SOA. /Absolute maximum ratings(Ta=25℃)
Symbol
Rating
Unit
VCBO 80 V
VCEO 60 V
VEBO 6.0 V
IC 3.0 A
ICP 6.0 A
PC(Ta=25℃)
2.0 W
PC(Tc=25℃)
30 W
Tj 150 ℃
Tstg -55～150 ℃
/Electrical characteristics(Ta=25℃)
Symbol
VCBO VCEO VEBO ICBO IEBO hFE VCE(sat) VBE(sat) fT Cob
Test condition
IC=50μA
IC=1.0mA
IE=50μA
VCB=80V
IE=0
VEB=6.0V
IC=0
VCE=4.0V
IC=500mA
IC=2.0A
IB=0.05A
IC=2.0A
IB=0.05A
VCE=5.
