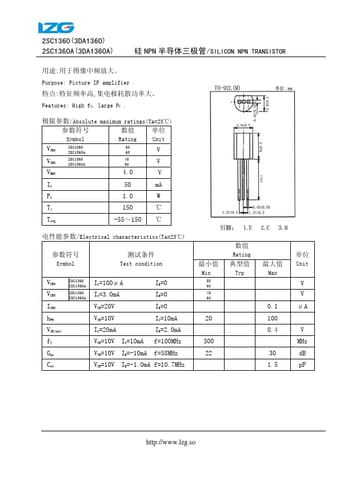

High fT, large PC . /Absolute maximum ratings(Ta=25℃)
Symbol
Rating
Unit
VCBO VCEO VEBO
2SC1360 2SC1360A
2SC1360 2SC1360A
50 60
V
45 60
V
4.0 V
IC 50 mA
PC 1.0 W
Tj 150 ℃
Tstg -55～150 ℃
/Electrical characteristics(Ta=25℃)
Symbol
Test condition
VCBO VCEO ICBO hFE VCE(sat) fT Gpe Cre
2SC1360 2SC1360A
2SC1360 2SC1360A
IC=100μA
IE=0
IC=3.0mA
IB=0
VCB=20V
IE=0
VCE=10V
IC=10mA
IC=20mA
IB=2.0mA
VCE=10V IC=10mA f=100MHz
VCB=10V IE=-10mA f=58MHz
VCB=10V IE=-1.0mA.
