Part number:
3DA2073A
Manufacturer:
FOSHAN BLUE ROCKET
File Size:
217.79 KB
Description:
Silicon npn transistor.

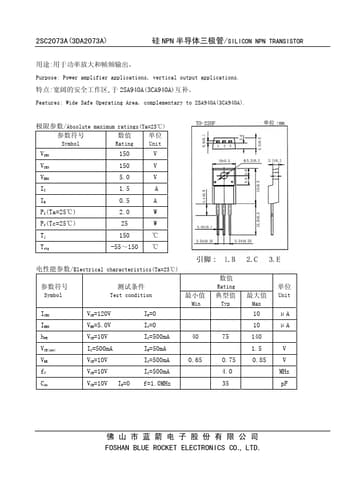

3DA2073A Datasheet (217.79 KB)
* Wide Safe Operating Area, complementary to 2SA940A(3CA940A). /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO 150 V VCEO 150 V VEBO 5.0 V IC 1.5 A IB 0.5 A PC(Ta=25℃) 2.0 W PC(Tc=25℃) 25 W Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol ICBO IEBO h
3DA2073A Datasheet (217.79 KB)
3DA2073A
FOSHAN BLUE ROCKET
217.79 KB
Silicon npn transistor.
