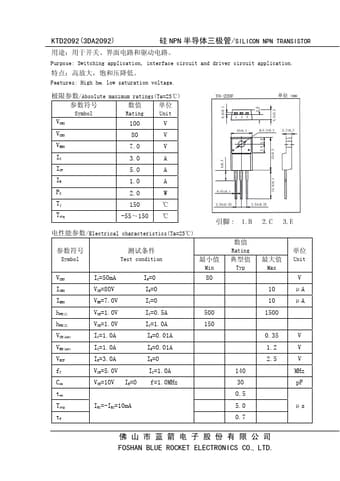

Part number:
3DA2092
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
288.11 KB
Description:
Silicon npn transistor.
* High hFE, low saturation voltage. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO 100 V VCEO 80 V VEBO 7.0 V IC 3.0 A ICP 5.0 A IB 1.0 A PC 2.0 W Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition VCEO ICBO IEBO hFE(1) hFE(2) VCE(sat)
3DA2092
BLUE ROCKET ELECTRONICS
288.11 KB
Silicon npn transistor.
