3DA27C Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

3DA27C

Manufacturer:

INCHANGE

File Size:

221.04kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • With TO-3
  • High DC Current Gain- : hFE >10@IC= 1.5A
  • High Collector-Emitter Breakdown Voltage- V(BR)CEO= 180

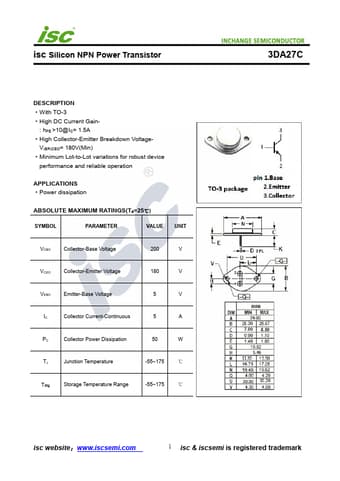

  • Datasheet Preview: 3DA27C 📥 Download PDF (221.04kb)
    Page 2 of 3DA27C

    3DA27C Application

    • Applications
    • Power dissipation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO
