BSS138W - N-Channel MOSFET

Fairchild Semiconductor

Datasheet Details

Part number	BSS138W
Manufacturer	Fairchild ↗ Semiconductor
File Size	232.12 KB
Description	N-Channel MOSFET
Datasheet	BSS138W-FairchildSemiconductor.pdf

These N-Channel enhancement mode field effect transistor.

RDS(ON) = 3.5Ω @ VGS = 10V, ID = 0.22A RDS(ON) = 6.0Ω @ VGS = 4.5V, ID = 0.22A.
High density cell design for extremely low RDS(ON).
Rugged and Reliable.

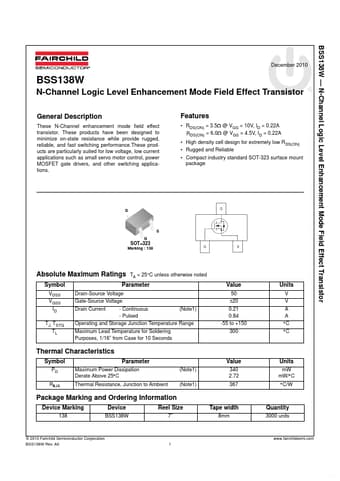

Compact industry standard SOT-323 surface mount package D S G SOT-323 Marking : 138 Absolute Maximum Ratings Symbol VDSS VGSS ID TJ, TSTG TL Drain-Source Voltage Gate-Source Voltage Drain Current TA = 25°C unless otherwise noted Parameter Value 50 ±20 (Note1) 0.21 0.84 -55 to +150 300 Units V V A A °C.
