BSS100 - N-Channel Logic Level Enhancement Mode Field Effect Transistor

Datasheet Summary

Description

These N-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process has been especially tailored to minimize on-state resistance, provide superior switching performance.

Features

  • BSS100: 0.22A, 100V. RDS(ON) = 6Ω @ VGS = 10V. BSS123: 0.17A, 100V. RDS(ON) = 6Ω @ VGS = 10V High density cell design for extremely low RDS(ON). Voltage controlled small signal switch. Rugged and reliable. _______________________________________________________________________________ D G BSS100 BSS123 S Absolute Maximum Ratings Symbol Parameter TA = 25°C unless otherwise noted BSS100 BSS123 Units VDSS VDGR VGSS Drain-Source Voltage Drain-Gate Voltage (RGS < 20KΩ) Gate-Source Voltage.

📥 Download Datasheet

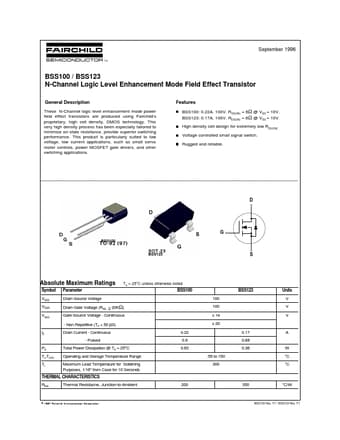

Datasheet preview – BSS100
