BSS138WQ 50V N-CHANNEL MOSFET

Diodes

BSS138WQ Description

BSS138WQ 50V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 50V RDS(ON) Max 3.5Ω @ VGS = 10V ID Max TA = +25°C 0.28A .
and Applications This MOSFET is designed to meet the stringent requirements of automotive applications.

BSS138WQ Features

* Low On-Resistance
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

BSS138WQ Applications

* This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
* Motor Control

📥 Download Datasheet

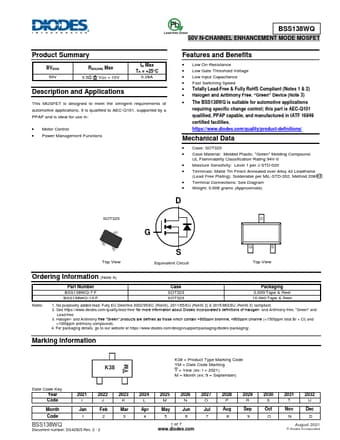

BSS138WQ Datasheet Preview — Preview of BSS138WQ PDF

Datasheet Details

Part number: BSS138WQ
Manufacturer: DIODES ↗
File Size: 682.10 KB
Datasheet: BSS138WQ-Diodes.pdf
Description: 50V N-CHANNEL MOSFET
