BSS138W Description

BSS138W N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 50V RDS(ON) Max 3.5Ω @ VGS = 10V ID Max TA = +25°C 200mA .
and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it id.

BSS138W Features

* Low On-Resistance
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen- and Antimony-Free. “Green” Device (Note 3)

BSS138W Applications

* This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.

📥 Download Datasheet

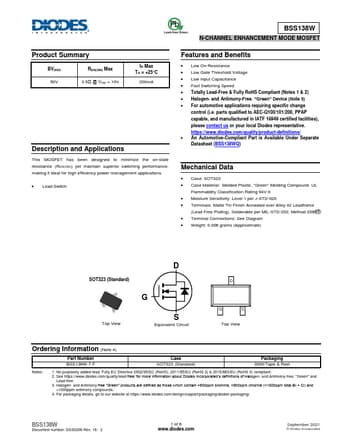

BSS138W Datasheet Preview — Preview of BSS138W PDF

Datasheet Details

Part number: BSS138W
Manufacturer: DIODES ↗
File Size: 582.51 KB
Datasheet: BSS138W-Diodes.pdf
Description: N-Channel MOSFET
