FAN5230

System Electronics Regulator

Fairchild Semiconductor

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Rochester Electronics LLC	FAN5230QSCX	SWITCHING REGULATOR/CONTROLLER	DigiKey	0	159 units	$1.89	🛒 Buy Now

Download Datasheet (254.14 KB)

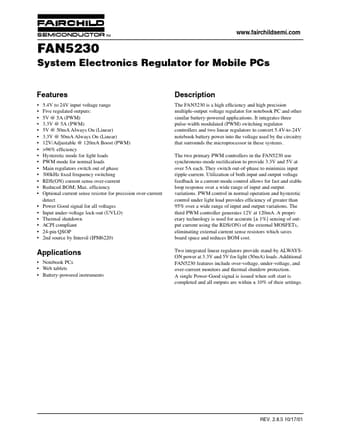

FAN5230 Datasheet Preview — Preview of FAN5230 Datasheet

Datasheet Details

Part number:

FAN5230

Manufacturer:

Fairchild Semiconductor

File Size:

254.14 KB

Description:

System electronics regulator.
www.fairchildsemi.com FAN5230 System Electronics Regulator for Mobile PCs Features * * * * * * * *.
The FAN5230 is a high efﬁciency and high precision multiple-output voltage regulator for notebook PC.

✔ FAN5230 Features

5.4V to 24V input voltage range Five regulated outputs: 5V @ 5A (PWM) 3.3V @ 5A (PWM) 5V @ 50mA Always On (Linear) 3.3V @ 50mA A

✔ FAN5230 Application

It integrates three pulse-width modulated (PWM) switching regulator controllers and two linear regulators t
