FAN5235 - System Electronics Regulator

FAN5235 Description

www.fairchildsemi.com FAN5235 System Electronics Regulator for Mobile PCs .
The FAN5235 is a high efficiency and high precision DC/DC controller for notebook converters.

FAN5235 Features

* Synchronous rectification ±1% precision internal reference >90% efficiency Input and output voltage feedback 5.4V to 24V input voltage range Internally set 300kHz

FAN5235 Applications

* Notebook PCs and PDAs
* Hand-held portable instruments Typical Application Vin = 5.4-24V FAN5235 1 VIN 3.3V-ALWAYS@50mA 5V-ALWAYS 2 3.3 ALW 3 CPUMP3.3 4 HSD3.3 3.3V @ 5A + 5 SW3.3 5V-ALWAYS@ 50mA 6 5V-ALW 7 LSD3.3 8 GND3.3 9 ISEN3.3 10 VFB3.3 SDN3.3 PGOOD 11 SDN3.3 12 PGOOD LSD5

📥 Download Datasheet

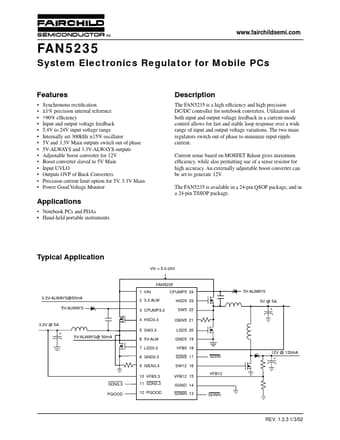

Preview of FAN5235 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN5235
Manufacturer
Fairchild Semiconductor
File Size
85.29 KB
Datasheet
FAN5235_FairchildSemiconductor.pdf
Description
System Electronics Regulator
