FAN5232 - Adjustable PWM Buck Controller

FAN5232 Description

www.fairchildsemi.com FAN5232 Adjustable PWM Buck Controller for LCD PCs .
The FAN5232 is a high efficiency and high precision DC/DC controller for PCs.

FAN5232 Features

* Three outputs: Adjustable Buck, 3.3V-Always, 5V-Always
* Adjustable synchronous switcher, 5V
* 80% Vin
* 1% internal reference precision
* Current mode with voltage feed-forward
* Precision current limit option
* Charge pump works at all load

FAN5232 Applications

* LCD PCs
* Notebook PCs and PDAs
* Hand-held portable instruments Block Diagram Vin = 16
* 22V 1 3.3V-Always 5V-Always 2 3 FAN5232 4 SDWN SDNADJ PWRGD 5 6 7 14 13 12 11 10 9 8 + 12V @ 8A REV. 1.1.1 10/7/02 FAN5232 PRODUCT SPECIFICATION Pin Assignments VBATT 3V_A

📥 Download Datasheet

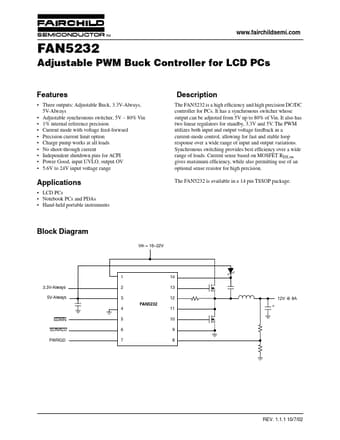

Preview of FAN5232 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN5232
Manufacturer
Fairchild Semiconductor
File Size
76.32 KB
Datasheet
FAN5232_FairchildSemiconductor.pdf
Description
Adjustable PWM Buck Controller
