FAN5231 - Precision Dual PWM Controller And Linear Regulator

FAN5231 Description

www.fairchildsemi.com FAN5231 Precision Dual PWM Controller And Linear Regulator for Notebook CPUs .
The FAN5231 is a highly integrated power controller, which provides a complete power management solution for mobile CPUs.

FAN5231 Features

* Provides 3 Regulated Voltages
* Microprocessor core (SpeedStep™-enabled)
* Microprocessor I/O
* Microprocessor Clock Generator
* High Efficiency Over Wide Load Range
* Not Dissipative Current-Sense Scheme
* Uses MOSFET’s R DS(ON)
* Opt

FAN5231 Applications

* Converters for Mobile Dual-Mode CPUs
* Web Tablets
* Internet Appliances +V IN PWM 2 V OUT2 I/ O CONTROLLER PWM 1 CONTROLLER V OUT1 CORE +V IN 3.3V V OUT3 CPU CLK LI NEAR REGULATOR VI D CODE FAN5231 Figure 1. Simplified Power System Diagram REV. 1.1.1 8/15/01 FAN5

📥 Download Datasheet

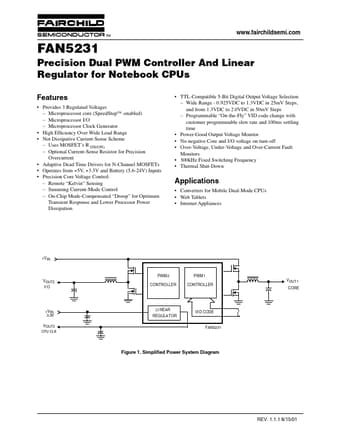

Preview of FAN5231 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN5231
Manufacturer
Fairchild Semiconductor
File Size
360.44 KB
Datasheet
FAN5231_FairchildSemiconductor.pdf
Description
Precision Dual PWM Controller And Linear Regulator
