FAN5343

6-LED Series Boost LED Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC FAN5343UMPX IC LED DRVR RGLTR SGL WR 6UMLP DigiKey 0 575 units
$0.52

FAN5343 Datasheet (1.36 MB)

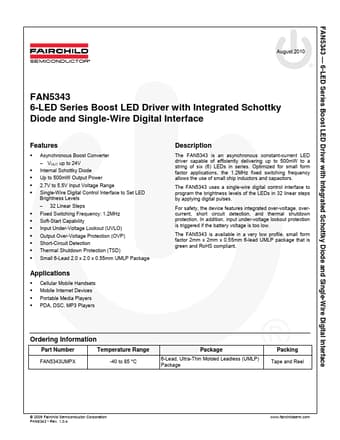

Preview of FAN5343 PDF Datasheet

Datasheet Details

Part number:

FAN5343

Manufacturer:

Fairchild Semiconductor

File Size:

1.36 MB

Description:

6-led series boost led driver

FAN5343 Features

* Asynchronous Boost Converter

* VOUT up to 24V

* Internal Schottky Diode

* Up to 500mW Output Power

* 2.7V to 5.5V Input Voltage Range

* Single-Wire Digital Control Interface to Set LED Brightness Levels

* 32 Linear Steps

* Fixed Switching Frequency: 1.2MHz

FAN5343 General Description

The FAN5343 is an asynchronous constant-current LED driver capable of efficiently delivering up to 500mW to a string of six (6) LEDs in series. Optimized for small form factor applications, the 1.2MHz fixed switching frequency allows the use of small chip inductors and capacitors. The FAN5343 uses a.
