FAN5346

Series Boost LED Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi FAN5346S30X IC LED DRVR RGLTR PWM 25MA 6SSOT DigiKey 0 0
$0

FAN5346 Datasheet (1.84 MB)

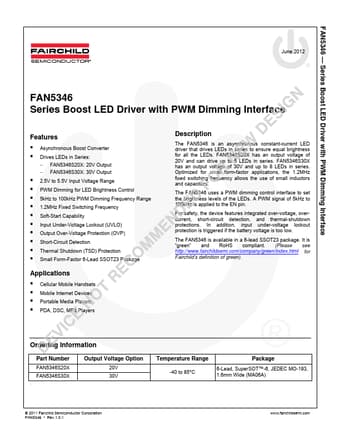

Preview of FAN5346 PDF Datasheet

Datasheet Details

Part number:

FAN5346

Manufacturer:

Fairchild Semiconductor

File Size:

1.84 MB

Description:

Series boost led driver

FAN5346 Features

* Asynchronous Boost Converter

* Drives LEDs in Series:

* FAN5346S20X: 20V Output

* FAN5346S30X: 30V Output

* 2.5V to 5.5V Input Voltage Range

* PWM Dimming for LED Brightness Control

* 5kHz to 100kHz PWM Dimming Frequency Range

* 1.2MHz Fixed Switching Freque

FAN5346 General Description

The FAN5346 is an asynchronous constant-current LED driver that drives LEDs in series to ensure equal brightness for all the LEDs. FAN5346S20X has an output voltage of 20V and can drive up to 5 LEDs in series. FAN5346S30X has an output voltage of 30V and up to 8 LEDs in series. Optimized for small f.
