FCD5N60_F085 Datasheet, Mosfet, Fairchild Semiconductor

FCD5N60_F085 Features

  • Mosfet
  • 600V, 4.6A, typ. Rds(on)=860mΩ@VGS=10V
  • Ultra Low Gate Charge (Typ. Qg = 16 nC)
  • UIS Capability
  • RoHS Compliant
  • Qualified to AEC Q101 Appl

PDF File Details

Part number:

FCD5N60_F085

Manufacturer:

Fairchild Semiconductor

File Size:

336.58kb

Download:

📄 Datasheet

Description:

N-channel superfet mosfet. SuperFETTM is Fairchild’s proprietary new generation of high voltage MOSFETs utilizing an advanced charge balance mechanism for outst

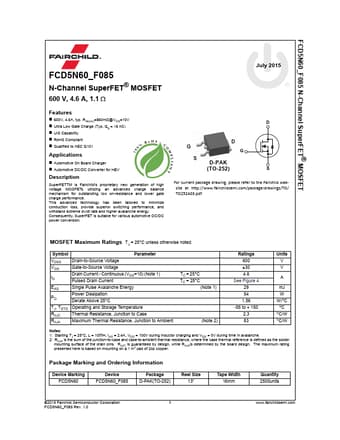

Datasheet Preview: FCD5N60_F085 📥 Download PDF (336.58kb)
Page 2 of FCD5N60_F085 Page 3 of FCD5N60_F085

FCD5N60_F085 Application

  • Applications
  • Automotive On Board Charger
  • Automotive DC/DC Converter for HEV Description SuperFETTM is Fairchild’s proprietary ne
