FDS2070N3 N-Channel MOSFET

FDS2070N3 Description

FDS2070N3 February 2004 FDS2070N3 150V N-Channel PowerTrench® MOSFET General .
This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional sw.

FDS2070N3 Features

* 4.1 A, 150 V. RDS(ON) = 78 mΩ @ VGS = 10 V RDS(ON) = 88 mΩ @ VGS = 6.0 V
* High performance trench technology for extremely low RDS(ON)
* High power and current handling capability
* Fast switching, low gate charge (38nC typical)
* FLMP SO-8 package: Enhance

FDS2070N3 Applications

* Synchronous rectifier

📥 Download Datasheet

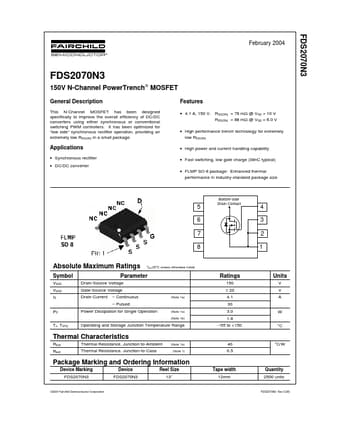

Preview of FDS2070N3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
