FDS2572 Datasheet, Mosfet, Fairchild Semiconductor

FDS2572 Features

  • Mosfet
  • RDS(ON) = 0.040Ω (Typ.), VGS = 10V
  • Qg(TOT) = 29nC (Typ.), VGS = 10V
  • Low QRR Body Diode
  • Maximized efficiency at high frequencies
  • UIS Rat

PDF File Details

Part number:

FDS2572

Manufacturer:

Fairchild Semiconductor

File Size:

273.85kb

Download:

📄 Datasheet

Description:

N-channel mosfet. ® UltraFET devices combine characteristics that enable benchmark efficiency in power conversion applications. Optimized for Rds(on),

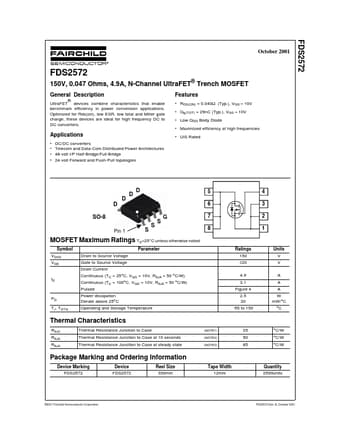

Datasheet Preview: FDS2572 📥 Download PDF (273.85kb)
Page 2 of FDS2572 Page 3 of FDS2572

FDS2572 Application

  • Applications Optimized for Rds(on), low ESR, low total and Miller gate charge, these devices are ideal for high frequency DC to DC converters. Fea
