FDS2582 Datasheet, Mosfet, Fairchild Semiconductor

FDS2582 Features

  • Mosfet
  • r DS(ON) = 57mΩ (Typ.), VGS = 10V, ID = 4.1A
  • Qg(tot) = 19nC (Typ.), VGS = 10V
  • Low Miller Charge
  • Low QRR Body Diode
  • Optimized efficiency

PDF File Details

Part number:

FDS2582

Manufacturer:

Fairchild Semiconductor

File Size:

283.45kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

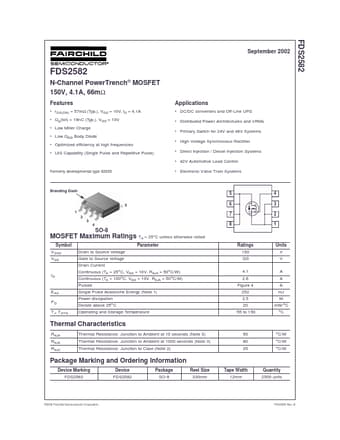

Datasheet Preview: FDS2582 📥 Download PDF (283.45kb)
Page 2 of FDS2582 Page 3 of FDS2582

FDS2582 Application

  • Applications
  • DC/DC converters and Off-Line UPS
  • Distributed Power Architectures and VRMs
  • Primary Switch for 24V and 48V
