FDS2570 - N-Channel MOSFET

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	FDS2570
Manufacturer	Fairchild Semiconductor
File Size	232.37 KB
Description	N-Channel MOSFET
Datasheet	FDS2570 Datasheet

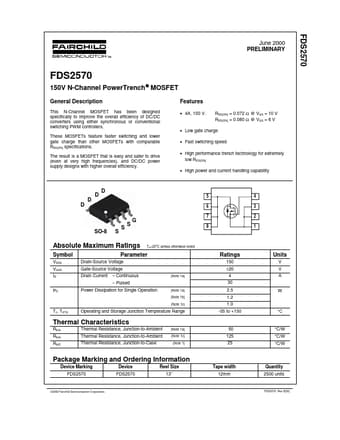

Additional preview pages of the FDS2570 datasheet.

Product details

Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

Features

4A, 150 V. RDS(ON) = 0.072 Ω @ VGS = 10 V RDS(ON) = 0.080 Ω @ VGS = 6 V.
Low gate charge.
Fast switching speed.
High performance trench technology for extremely low RDS(ON).
High power and current handling capability D D D D 5 6 4 3 2 1 SO-8 S S S G 7 8 Absolute Maximum Ratings Symbol VDSS VGSS ID PD Drain-Source Voltage Gate-Source Voltage Drain Current.
Continuous.
Pulsed TA=25 C unless otherwise noted o Parameter R.
