FDS2070N7

N-Channel MOSFET

FDS2070N7 Features

* 4.1 A, 150 V. RDS(ON) = 78 mΩ @ VGS = 10 V RDS(ON) = 88 mΩ @ VGS = 6.0 V

* High performance trench technology for extremely low RDS(ON)

* High power and current handling capability

* Fast switching, low gate charge (38nC typical)

* FLMP SO-8 package: Enhance

FDS2070N7 General Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for “low side” synchronous rectifier operation, providing an extremely low RDS(ON) in a small package. .

FDS2070N7 Datasheet (176.55 KB)

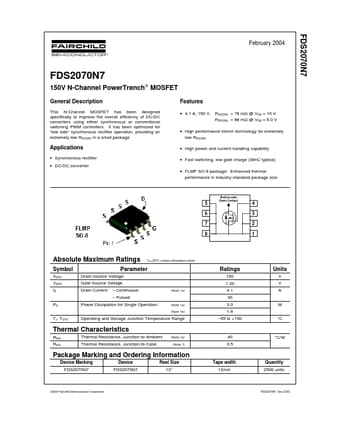

Preview of FDS2070N7 PDF

Datasheet Details

Part number:

FDS2070N7

Manufacturer:

Fairchild Semiconductor

File Size:

176.55 KB

Description:

N-channel mosfet.
