FDS7066ASN3, 30V N-Channel PowerTrench SyncFET

FDS7066ASN3 August 2004 FDS7066ASN3 30V N-Channel PowerTrench® SyncFET™ General .
The FDS7066ASN3 is designed to replace a single SO8 FLMP MOSFET and Schottky diode in synchronous DC:DC power supplies.

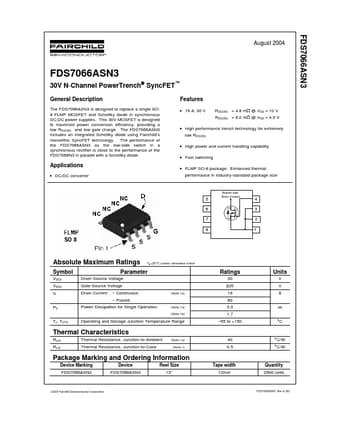

datasheet Preview Page 1 from Datasheet4u.com

FDS7066ASN3_FairchildSemiconductor.pdf

FDS7066ASN3 Datasheet Preview — Preview of FDS7066ASN3 PDF

Datasheet Details

Part number:

FDS7066ASN3

Manufacturer:

Fairchild Semiconductor

File Size:

144.39 KB

Description:

30V N-Channel PowerTrench SyncFET

Features

* 19 A, 30 V RDS(ON) = 4.8 mΩ @ VGS = 10 V RDS(ON) = 6.0 mΩ @ VGS = 4.5 V
* High performance trench technology for extremely low RDS(ON)
* High power and current handling capability
* Fast switching
* FLMP SO-8 package: Enhanced thermal performance in industry

Applications

* DC/DC converter 5 6 7 8 Bottom-side Drain Contact 4 3 2 1 Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ, TSTG Drain-Source Voltage Gate-Source Voltage Drain Current
* Continuous
* Pulsed TA=25oC unless otherwise noted Parameter Ratings 30 ±20 (Note 1a) Units V
