FDS7066N7, 30V N-Channel PowerTrench MOSFET

FDS7066N7 May 2003 FDS7066N7 30V N-Channel PowerTrench MOSFET General .
This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional sw.

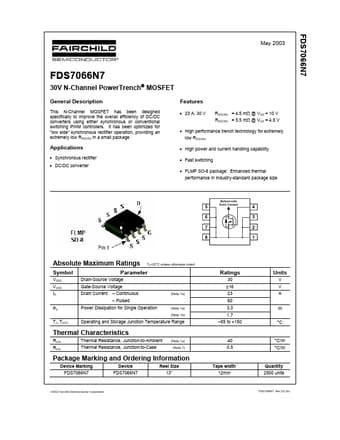

datasheet Preview Page 1 from Datasheet4u.com

FDS7066N7_FairchildSemiconductor.pdf

FDS7066N7 Datasheet Preview — Preview of FDS7066N7 PDF

Datasheet Details

Part number:

FDS7066N7

Manufacturer:

Fairchild Semiconductor

File Size:

167.44 KB

Description:

30V N-Channel PowerTrench MOSFET

Features

* 23 A, 30 V RDS(ON) = 4.5 mΩ @ VGS = 10 V RDS(ON) = 5.5 mΩ @ VGS = 4.5 V
* High performance trench technology for extremely low RDS(ON)
* High power and current handling capability
* Fast switching
* FLMP SO-8 package: Enhanced thermal performance in industry

Applications

* Synchronous rectifier
* DC/DC converter 5 6 7 8 Bottom-side Drain Contact 4 3 2 1 Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ, TSTG Drain-Source Voltage Gate-Source Voltage Drain Current
* Continuous
* Pulsed TA=25oC unless otherwise noted Parameter Ra
