FDS2572

N-Channel MOSFET

FDS2572 Features

* RDS(on) = 0.040 mW (Typ.), VGS = 10 V

* Qg(TOT) = 29 nC (Typ.), VGS = 10 V

* Low QRR Body Diode

* Maximized Efficiency at High Frequencies

* UIS Rated

* These Device is Pb

* Free and Halide Free Typical Applications

* DC

* DC Conv

FDS2572 Datasheet (373.91 KB)

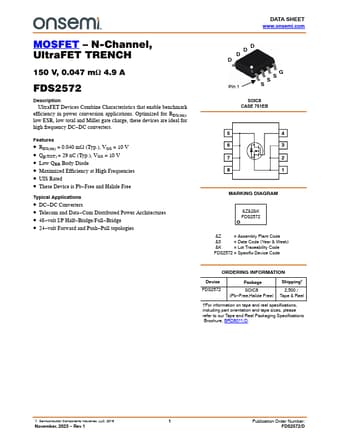

Preview of FDS2572 PDF

Datasheet Details

Part number:

FDS2572

Manufacturer:

ON Semiconductor ↗

File Size:

373.91 KB

Description:

N-channel mosfet.
