FDS7066SN3 Datasheet - Fairchild Semiconductor

30V N-Channel PowerTrench SyncFET

FDS7066SN3 Features

* 19 A, 30 V RDS(ON) = 5.5 mΩ @ VGS = 10 V RDS(ON) = 6.0 mΩ @ VGS = 4.5 V

* High performance trench technology for extremely low RDS(ON)

* High power and current handling capability

* Fast switching

* FLMP SO-8 package: Enhanced thermal performance in industry

FDS7066SN3 General Description

The FDS7066SN3 is designed to replace a single SO-8 FLMP MOSFET and Schottky diode in synchronous DC:DC power supplies. This 30V MOSFET is designed to maximize power conversion efficiency, providing a low RDS(ON) and low gate charge. The FDS7066SN3 includes an integrated Schottky diode using Fairchi.

FDS7066SN3 Datasheet (188.15 KB)

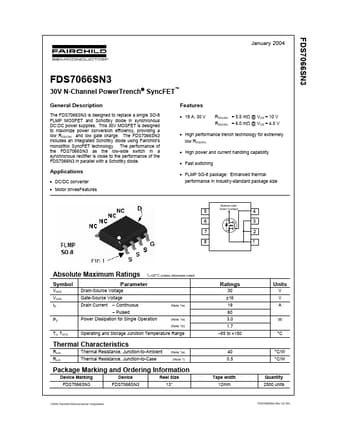

FDS7066SN3 Datasheet Preview — Preview of FDS7066SN3 PDF

Datasheet Details

Part number:

FDS7066SN3

Manufacturer:

Fairchild Semiconductor

File Size:

188.15 KB

Description:

30v n-channel powertrench syncfet.
