G40N60UFD - FGA40N60UFD

Datasheet Summary

Description

Fairchild's UFD series of Insulated Gate Bipolar Transistors (IGBTs) provides low conduction and switching losses.

The UFD series is designed for applications such as motor control and general inverters where high speed switching is a required feature.

Features

  • High speed switching Low saturation voltage : VCE(sat) = 2.3 V @ IC = 20A High input impedance CO-PAK, IGBT with FRD : trr = 50ns (typ. ).

📥 Download Datasheet

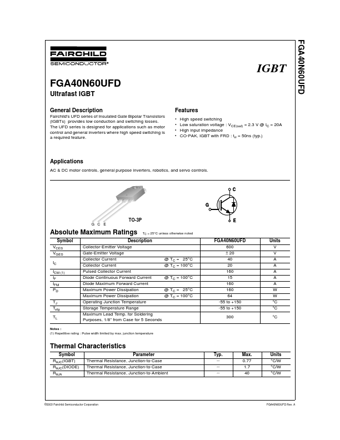

Datasheet preview – G40N60UFD

Datasheet Details

Part number G40N60UFD
Manufacturer Fairchild Semiconductor
File Size 574.33 KB
Description FGA40N60UFD
Datasheet download datasheet G40N60UFD Datasheet
