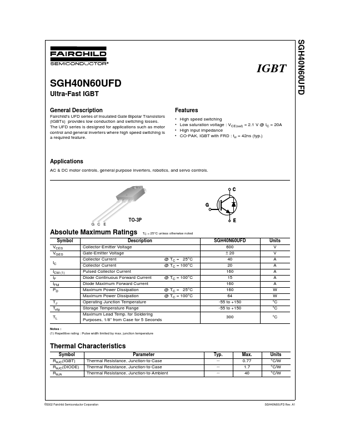

Part number: G40N60
Manufacturer: Fairchild Semiconductor
File Size: 599.63KB
Download: 📄 Datasheet
Description: Ultrafast IGBT
Part number: G40N60
Manufacturer: Fairchild Semiconductor
File Size: 599.63KB
Download: 📄 Datasheet
Description: Ultrafast IGBT
* High speed switching
* Low saturation voltage : VCE(sat) = 2.1 V @ IC = 20A
* High input impedance
* CO-PAK, IGBT with FRD : trr = 42ns (typ.)
Applicat.
such as motor control and general inverters where high speed switching is a required feature.
Features
* High speed.
Fairchild's UFD series of Insulated Gate Bipolar Transistors (IGBTs) provides low conduction and switching losses. The UFD series is designed for applications such as motor control and general inverters where high speed switching is a required featur.
