HUFA76409D3 Datasheet - Fairchild Semiconductor

HUFA76409D3 N-Channel MOSFET

HUFA76409D3 Features

* Ultra Low On-Resistance - rDS(ON) = 0.063Ω, VGS = 10V - rDS(ON) = 0.071Ω, VGS = 5V

* Simulation Models - Temperature Compensated PSPICE® and SABER™ Electrical Models - Spice and SABER Thermal Impedance Models - www.fairchildsemi.com

* Peak Current vs Pulse Width Curve

HUFA76409D3 Datasheet (206.58 KB)

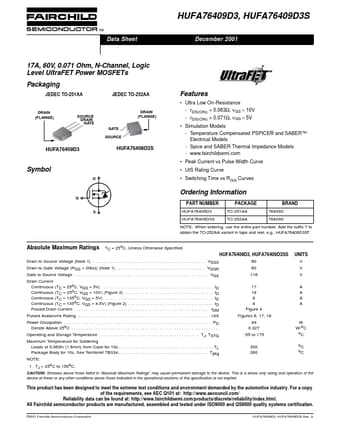

Preview of HUFA76409D3 PDF
HUFA76409D3 Datasheet Preview Page 2 HUFA76409D3 Datasheet Preview Page 3

Datasheet Details

Part number:

HUFA76409D3

Manufacturer:

Fairchild Semiconductor

File Size:

206.58 KB

Description:

N-channel mosfet.
