HUFA76407DK8 - N-Channel MOSFET

Fairchild Semiconductor

HUFA76407DK8 Description

HUFA76407DK8 Data Sheet December 2001 3.5A, 60V, 0.105 Ohm, Dual N-Channel, Logic Level UltraFET® Power MOSFET Packaging JEDEC MS-012AA BRANDING DASH.

HUFA76407DK8 Features

* Ultra Low On-Resistance - rDS(ON) = 0.090Ω, VGS = 10V - rDS(ON) = 0.105Ω, VGS = 5V 5 1 2 3 4
* Simulation Models - Temperature Compensated PSPICE® and SABER™ Electrical Models - SPICE and SABER Thermal Impedance Models - www. fairchildsemi. com
* Peak Current vs Pulse Width

📥 Download Datasheet

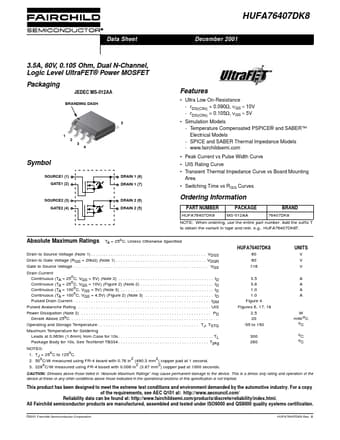

HUFA76407DK8 Datasheet Preview — Preview of HUFA76407DK8 PDF

Datasheet Details

Part number: HUFA76407DK8
Manufacturer: Fairchild Semiconductor
File Size: 263.15 KB
Datasheet: HUFA76407DK8_FairchildSemiconductor.pdf
Description: N-Channel MOSFET
