* Ultra Low On-Resistance - rDS(ON) = 0.092Ω, VGS = 10V - rDS(ON) = 0.107Ω, VGS = 5V
* Simulation Models - Temperature Compensated PSPICE® and SABER™ Electrical Models - Spice and SABER Thermal Impedance Models - www.fairchildsemi.com
* Peak Current vs Pulse Width Curve DRAI
HUFA76407P3 Datasheet (209.77 KB)
HUFA76407P3
Fairchild Semiconductor
209.77 KB
N-channel mosfet.

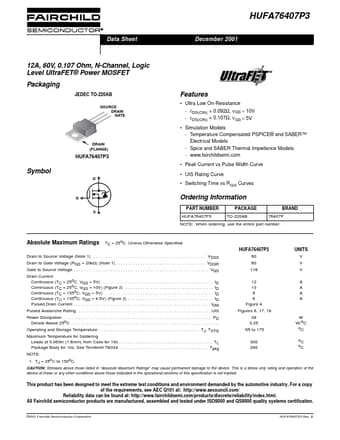

HUFA76407P3
Data Sheet December 2001
12A, 60V, 0.107 Ohm, N-Channel, Logic Level UltraFET® Power MOSFET Packaging
JEDEC TO-220AB
SOURCE DRAIN GATE
F.
