* Ultra Low On-Resistance - rDS(ON) = 0.092Ω, VGS = 10V - rDS(ON) = 0.107Ω, VGS = 5V
* Simulation Models - Temperature Compensated PSPICE® and SABER™ Electrical Models - Spice and SABER Thermal Impedance Models - www.fairchildsemi.com
* Peak Current vs Pulse Width Curve
HUFA76407D3 Datasheet (234.60 KB)
HUFA76407D3
Fairchild Semiconductor
234.60 KB
N-channel mosfet.

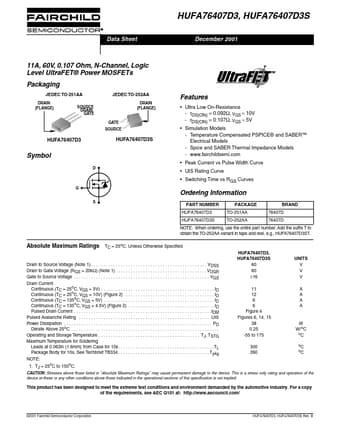

HUFA76407D3, HUFA76407D3S
Data Sheet December 2001
11A, 60V, 0.107 Ohm, N-Channel, Logic Level UltraFET® Power MOSFETs Packaging
JEDEC TO-251AA
DRAIN.
