IRF710A - Advanced Power MOSFET

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

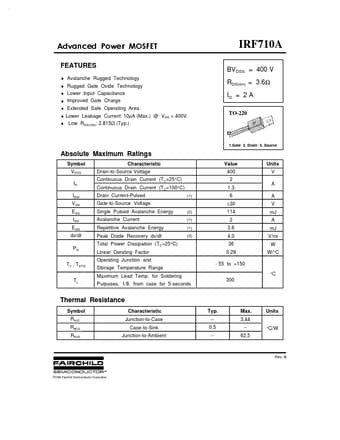

IRF710A Advanced Power MOSFET by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – IRF710A

Datasheet Details

Part number	IRF710A
Manufacturer	Fairchild Semiconductor
File Size	252.20 KB
Description	Advanced Power MOSFET
Datasheet	IRF710A Datasheet
Additional preview pages of the IRF710A datasheet.

Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 400V.
Low RDS(ON): 2.815Ω (Typ. ) IRF710A BVDSS = 400 V RDS(on) = 3.6Ω ID = 2 A TO-220 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Dra.
