IRF7103PBF - Power MOSFET

IRF7103PBF Description

PD -95037B IRF7103PbF l Adavanced Process Technology l Ultra Low On-Resistance l Dual N-Channel MOSFET l Surface Mount l Available in Tape & Reel l D.
The SO-8 has been modified through a customized leadframe for enhanced thermal characteristics and dual-die capability making it ideal in a variety of.

IRF7103PBF Applications

* With these improvements, multiple devices can be used in an application with dramatically reduced board space. The package is designed for vapor phase, infra red, or wave soldering techniques. Power dissipation of greater than 0.8W is possible in a typical PCB mount application. SO-8 Absolute Max

📥 Download Datasheet

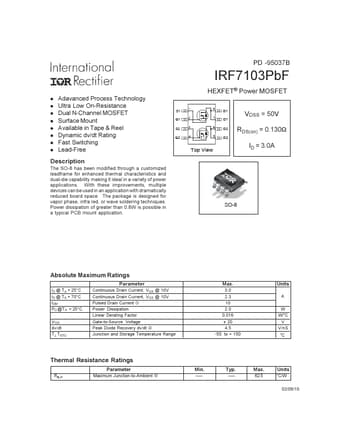

Preview of IRF7103PBF PDF
datasheet Preview Page 2 datasheet Preview Page 3
