IRFP150N N-Channel Power MOSFET

Fairchild Semiconductor

Description

IRFP150N Data Sheet January 2002 44A, 100V, 0.030 Ohm, N-Channel Power MOSFET Packaging JEDEC TO-247 SOURCE DRAIN GATE .

📥 Download Datasheet

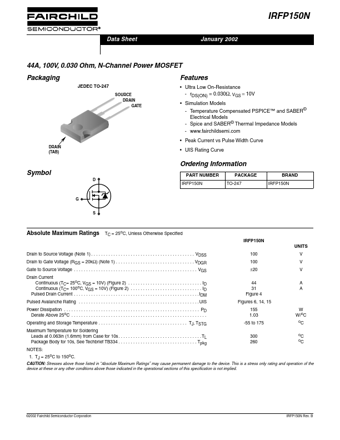

IRFP150N Datasheet Preview — Preview of IRFP150N PDF

Datasheet Specifications

Part number: IRFP150N
Manufacturer: Fairchild Semiconductor
File Size: 148.85 KB
Datasheet: IRFP150N_FairchildSemiconductor.pdf
Description: N-Channel Power MOSFET

Features

* Ultra Low On-Resistance - rDS(ON) = 0.030Ω, VGS = 10V
* Simulation Models - Temperature Compensated PSPICE™ and SABER© Electrical Models - Spice and SABER© Thermal Impedance Models - www. fairchildsemi. com
* Peak Current vs Pulse Width Curve DRAIN (TAB)
* UIS Ratin
