IRFR234 - Power MOSFET

Features

  • Avalanche Rugged Technology.
  • Rugged Gate Oxide Technology.
  • Lower Input Capacitance.
  • Improved Gate Charge.
  • Extended Safe Operating Area.
  • Lower Leakage Current: 10µA (Max. ) @ VDS = 250V.
  • Lower RDS(ON): 0.327Ω (Typ. ) BVDSS = 250 V RDS(on) = 0.45Ω ID = 6.6 A D-PAK I-PAK 2 11 3 2 3 Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (.

📥 Download Datasheet

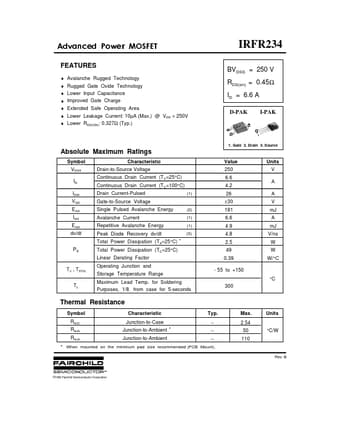

Datasheet preview – IRFR234

📁 Similar Datasheet

  • IRFR234A - Power MOSFET (Samsung)
  • IRFR2307Z - AUTOMOTIVE MOSFET (International Rectifier)
  • IRFR2307Z - N-Channel MOSFET (INCHANGE)
  • IRFR2307ZPbF - Power MOSFET (International Rectifier)
  • IRFR210 - Power MOSFET (International Rectifier)
  • IRFR210 - Power MOSFET (Vishay Siliconix)
  • IRFR210A - Power MOSFET (Samsung)
  • IRFR210PBF - HEXFET POWER MOSFET (International Rectifier)
  • IRFR214 - N-Channel Power MOSFETs (Intersil Corporation)
  • IRFR214 - Power MOSFET (International Rectifier)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text
$GYDQFHG 3RZHU 026)(7 IRFR234 FEATURES ♦ Avalanche Rugged Technology ♦ Rugged Gate Oxide Technology ♦ Lower Input Capacitance ♦ Improved Gate Charge ♦ Extended Safe Operating Area ♦ Lower Leakage Current: 10µA (Max.) @ VDS = 250V ♦ Lower RDS(ON): 0.327Ω (Typ.) BVDSS = 250 V RDS(on) = 0.45Ω ID = 6.
