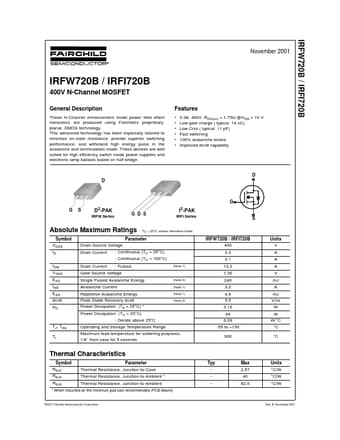

IRFW720B Datasheet, Mosfet, Fairchild Semiconductor

IRFW720B Features

• Mosfet
• 3.3A, 400V, RDS(on) = 1.75Ω @VGS = 10 V
• Low gate charge ( typical 14 nC)
• Low Crss ( typical 11 pF)
• Fast switching
• 100% avalanche tested

PDF File Details

Part number:

IRFW720B

Manufacturer:

Fairchild Semiconductor

File Size:

663.80kb

Download:

📄 Datasheet

Description:

400v n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

TAGS

IRFW720B

Fairchild Semiconductor
