IRFW710S - Power MOSFET

Fairchild Semiconductor

📥 Download Datasheet

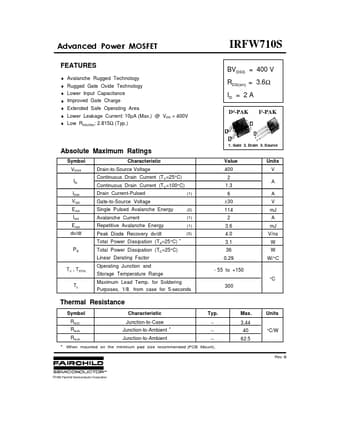

IRFW710S Datasheet Preview — Preview of IRFW710S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRFW710S
Manufacturer: Fairchild Semiconductor
File Size: 224.05 KB
Datasheet: IRFW710S-FairchildSemiconductor.pdf
Description: Power MOSFET

IRFW710S Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 400V.
Low RDS(ON): 2.815Ω (Typ. ) Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25°C) Continuous Drain Current (TC=100°C) Drain Current-Pulsed (1).
