IRFW720S - Power MOSFET

Fairchild Semiconductor

📥 Download Datasheet

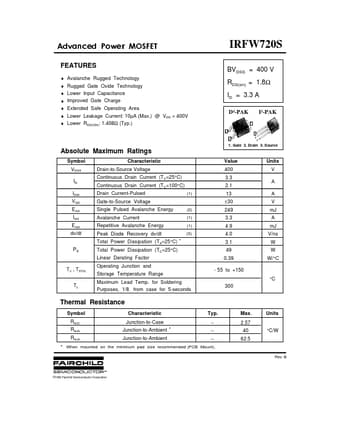

IRFW720S Datasheet Preview — Preview of IRFW720S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRFW720S
Manufacturer: Fairchild Semiconductor
File Size: 224.97 KB
Datasheet: IRFW720S-FairchildSemiconductor.pdf
Description: Power MOSFET

IRFW720S Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 400V.
Lower RDS(ON): 1.408Ω (Typ. ) Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25°C) Continuous Drain Current (TC=100°C) Drain Current-Pulsed (.
