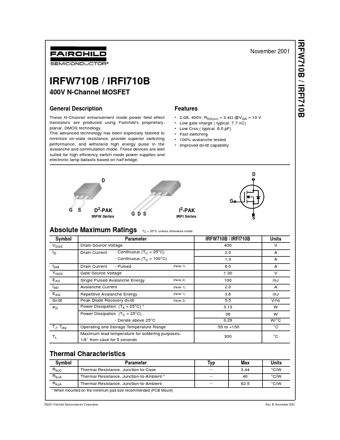

IRFW710B Datasheet, Mosfet, Fairchild Semiconductor

IRFW710B Features

• Mosfet
• 2.0A, 400V, RDS(on) = 3.4Ω @VGS = 10 V
• Low gate charge ( typical 7.7 nC)
• Low Crss ( typical 6.0 pF)
• Fast switching
• 100% avalanche teste

PDF File Details

Part number:

IRFW710B

Manufacturer:

Fairchild Semiconductor

File Size:

646.30kb

Download:

📄 Datasheet

Description:

400v n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.
