IRFW450 Datasheet, Transistor, Inchange Semiconductor

IRFW450 Features

  • Transistor
  • Drain Current
      –ID= 14A@ TC=25℃
  • Drain Source Voltage- : VDSS= 500V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 0.4Ω (Max)
  • Fast

PDF File Details

Part number:

IRFW450

Manufacturer:

Inchange Semiconductor

File Size:

80.74kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

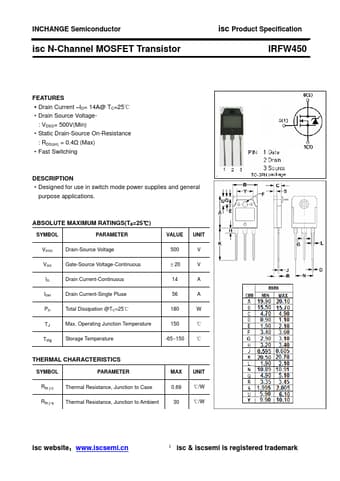

  • Datasheet Preview: IRFW450 📥 Download PDF (80.74kb)
    Page 2 of IRFW450

    IRFW450 Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current
