IRFW614A, IRFI614A - Power MOSFET

Fairchild Semiconductor

📥 Download Datasheet

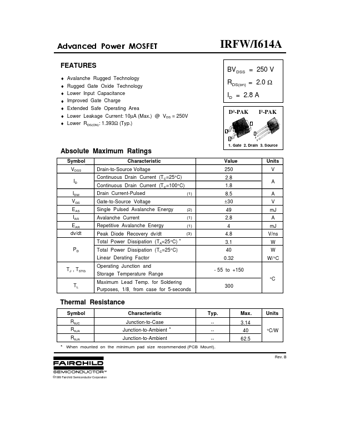

IRFW614A Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFW614A, IRFI614A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRFW614A, IRFI614A
Manufacturer: Fairchild Semiconductor
File Size: 228.56 KB
Datasheet: IRFI614A-FairchildSemiconductor.pdf
Description: Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IRFW614A, IRFI614A.
Please refer to the document for exact specifications by model.

IRFW614A Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 250V.
Lower RDS(ON): 1.393Ω (Typ. ) Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25°C) Continuous Drain Current (TC=100°C) Drain Current-Pulsed (.
